The PergoSTET Plus 3m x 4m Rectangular Pergola features a modern grey metal frame, adjustable louvres, a slatted waterproof roof, hand crank operation, and integrated LED lighting. (Frame only).

The PergoSTET Plus 3m x 4m Rectangular Pergola with LED Lighting (Grey Frame Only) creates a modern patio space, overlooking a fenced grassy field and blue sky.

Redefine your outdoor space

Elegant yet functional, PergoSTET offers shade and protection from the elements while still allowing light to shine through.

Close-up of a "HARBOUR LIFESTYLE" sign on a black metal box attached to a gate against a brick wall—perfect for highlighting the PergoSTET Plus 3m x 3m Square Pergola with LED Lighting - Frame Only in Grey.

Close-up of a ceiling with purple LED strip lighting above a brick wall, featuring the PergoSTET Plus 3m x 3m Square Pergola with LED Lighting (Frame Only, Grey) and built-in drainage system for a modern look.

A person uses a metal crank handle to open a window by a wooden fence, beneath the PergoSTET Plus 3m x 3m Square Pergola with LED Lighting - Frame Only in Grey.

Close-up of the PergoSTET Plus 3m x 3m Square Pergola Frame in Grey, highlighting its integrated drainage system with a round pipe and bolts on a wet surface, typical of modern pergola designs.

Aerial view of the PergoSTET Plus pergola featuring an adjustable, waterproof louvered roof over a tiled patio, surrounded by greenery. Its built-in drainage system ensures harmony with the outdoor space.

Close-up of the PergoSTET Plus 3m x 3m Square Pergola (Frame Only, Grey) featuring a modern metal corner with built-in drainage, set against a blue sky and clouds. LED lighting included.

Close-up of the metal handle on the PergoSTET Plus 3m x 3m Square Pergola with LED Lighting (Frame Only, Grey), shown attached to a gray post with a brick wall and greenery in the background.

From the rooftop, a PergoSTET Plus 3m x 4m Grey Pergola Frame casts shadows on the beige tiled surface, showcasing modern pergola design.

Enjoy the stylish geometry of the PergoSTET Plus 3m x 4m rectangular pergola in grey, featuring metal slats and a waterproof roof for durability, paired with view-enhancing open sections.

Close-up of a PergoSTET Plus 3m x 4m rectangular pergola in grey, featuring its louvered roof with built-in drainage for waterproofing, set against lush plants for a serene backdrop.

Close-up of a modern gray metal door frame with a narrow gap and blurred background, reminiscent of the sleek design of the PergoSTET Plus 3m x 3m Square Pergola with LED Lighting - Frame Only in Grey.

Free Heater

PergoSTET Plus 3m x 4m Rectangular Pergola with LED Lighting - Frame Only in Grey

£2,599.00

Award-winning design
Fully integrated water drainage system
Innovative tilting louvres to block rain & adjust light

View Full Product Overview

Width: 399.7cm

Depth: 293cm

Height: 240cm

Colour: Grey

Order Free Swatches

Choose Your Shade...

Durable fabrics crafted to last, available in a variety of beautiful colors. Order your free swatch samples to see the quality for yourself.

Select your swatches (max of 4 per order)

For this product

PergoSTET Grey
i

What range(s) is this applicable to?
PergoSTET
PergoSTET White
i

What range(s) is this applicable to?
PergoSTET
PergoSTET Wood Effect
i

What range(s) is this applicable to?
PergoSTET

Other Outdoor Swatches

Please note these swatches are not compatible with the current product

All-weather Fawn
i

What range(s) is this applicable to?
Luna Pello Dekota Selene
All-weather Oyster Grey
i

What range(s) is this applicable to?
Luna
All-weather Grey
i

What range(s) is this applicable to?
Luna Pello
Latte
i

What range(s) is this applicable to?
Panama Havana Lima
Textured Charcoal
i

What range(s) is this applicable to?
Panama Havana Lima Dekota Selene
Washed Grey
i

What range(s) is this applicable to?
Panama Havana Lima
Grey
i

What range(s) is this applicable to?
Palma Monterrey
PergoSTET Latte
i

What range(s) is this applicable to?
PergoSTET
Santiago Grey
i

What range(s) is this applicable to?
Santiago
Two-tone Charcoal
Two-tone Latte

Your selection:

1
2
3
4

Product Size: 3m x 4m Frame Only

Optional Extras:

A 1x 3M PergoSTET Plus projection screen with an integrated manual side blind in grey, displayed on a white background.

1x - 3M PergoSTET Plus Integrated Manual Side Blind in Grey

£549.00

In Stock

Maximum of 2 per Pergola

1x - 4M PergoSTET Plus Integrated Manual Side Blind in Grey

£649.00

In Stock

Maximum of 2 per Pergola

PergoSTET Wifi & Bluetooth Heater in Grey

£449.00

In Stock

Installation Options:

Pergola Assembly Service

£499.00

Add Bolt Down (excluding Porcelain)

£100.00

Add Bolt Down to Porcelain

£250.00

Price: £2,599.00

In Stock | Delivered in 7-10 days

5% OFF PLUS RECEIVE A FREE PERGOLA HEATER

Use code SUMMER5 at checkout for an extra 5% OFF.

Plus receive a free pergola heater when you purchase this item. Limited Stock Available.

00 12 05 Days Hours Mins

Check your eligibility

Pay in Installments with

Earn 2599 points for this product

View More Like This

PergoSTET Plus 3m x 4m Rectangular Pergola with LED Lighting - Frame Only in Grey

Redefine your outdoor space

Elegant yet functional, PergoSTET offers shade and protection from the elements while still allowing light to shine through.

Product Highlights

Award Winning Design

Built-in Drainage System

Tilting Louvres

UV Resistant

Integrated Lighting

Powder Coated Protection

Product Overview

The PergoSTET range - exclusive to Harbour Lifestyle - is an award winning range of modern Pergolas. All PergoSTET pergolas provide shade in the summer heat, and can be switched to a fully waterproof roof at a moment's notice should the great British weather suddenly change! With tilting double-layered louvres, you can quickly switch between a closed roof and an open-top allowing the sunshine to come beaming through.

This 3m x 4m Rectangular Pergola Frame Only is customisable to suit your needs, with optional extras including blinds, heaters and assembly services.

The incredibly well designed, built-in drainage system prevents you from having to open the louvred roof as any excess water that lands on the louvres, flow into u shaped channels. You will never see the water draining off the Pergola, as any excess rainwater will flow from the roof into the framework of the pergola, once in the horizontal framework, the rainwater flows into the legs and then vertically down to the ground.

In addition to this, there are remote-controlled LED mood lighting strips around the perimeter of the gutter system. The LED strips can be an array of different colours and can be changed with the use of a remote control. The lights are dimmable to your desired brightness to set the mood. The gazebo would require a 240-volt socket for the lights to be activated.

All PergoSTET pergolas come with a 3 year warranty on the frame and 1 year warranty on the blinds and louvres.

Important assembly instructions:

PergoSTET pergolas need to be installed on level surfaces in order for their drainage system to work efficiently. Standard 1:80 falls for surface water runoffs on patios are perfectly acceptable. If the fall is significantly steeper than this, installation may still be possible but performance will be affected and warranties may be invalid.
Once assembled, it’s vital to immediately secure the pergola to the floor using the bolts provided as standard. Failing to bolt it down risks the structural integrity, potentially causing beams to shift. Unbolted feet leave your pergola vulnerable to movement, compromising its durability and safety.
This well engineered contemporary pergola requires 2-3 people to assemble and should be completed in approximately 2 - 3 hours.

Note - strong winds/weather conditions

We highly recommend assembling your pergola during suitable weather conditions. This will help ensure the safety of the pergola, minimize any potential risks during the assembly process, and facilitate a secure and successful installation.

If you experience strong winds, we recommend rolling up the blinds to avoid any damage to the structure. In extreme conditions you may need to temporarily hold the blind in the rolled up position using a spring clamp. We also recommend that the louvred roof is fully open.

By taking these precautions, you can help ensure the longevity and safety of your pergola and blinds during windy weather.

Note - Adding Additional Blinds

Additional blinds are now available for purchase on the pergola page, providing the option to fully enclose your PergoSTET. These blinds can be seamlessly installed on your pergola in the same manner as the existing ones, in accordance with our instruction manuals.

Depth: 293cm

Height: 240cm

Width: 399.7cm

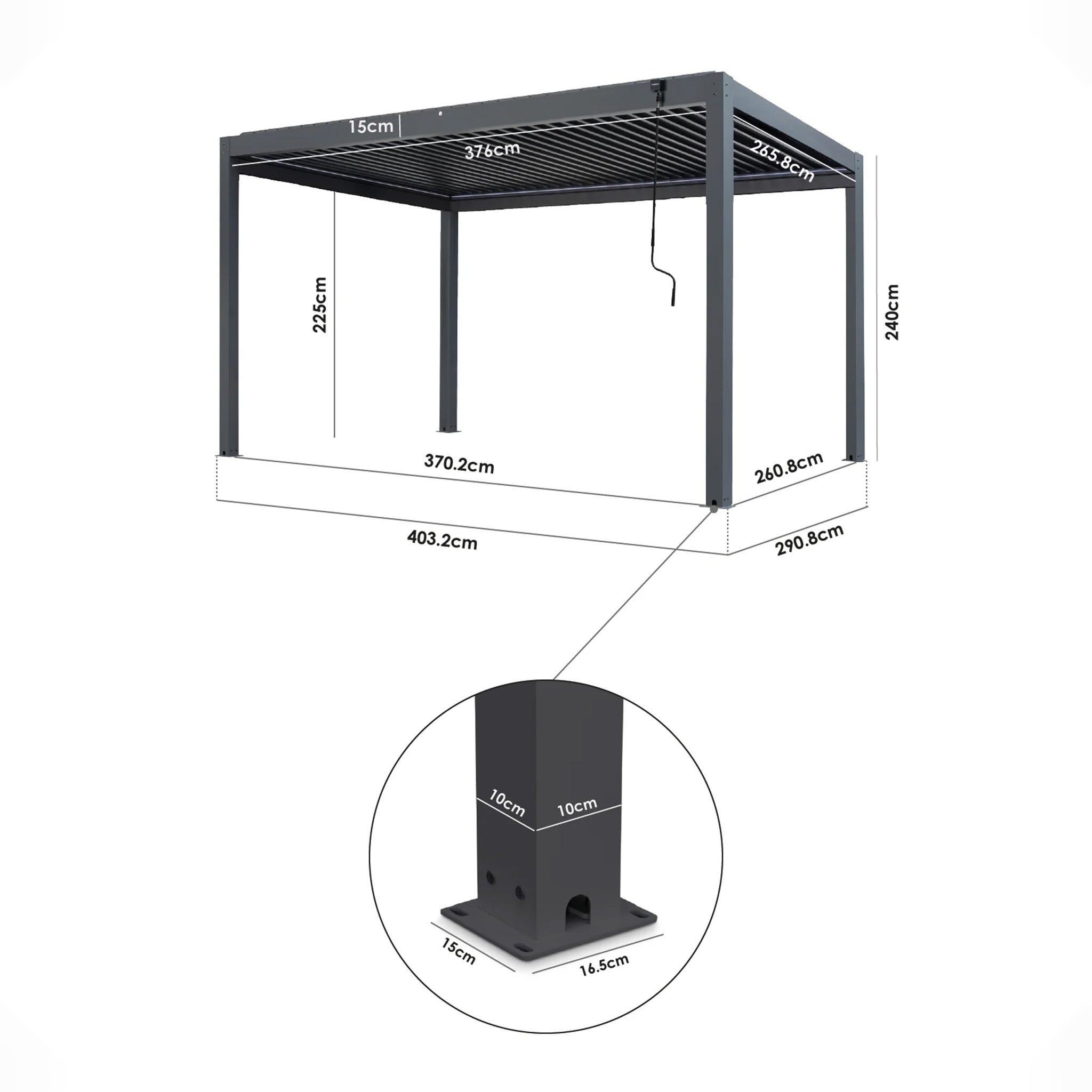

Additional Dimensions

Internal Width: 374.7cm

Internal Depth: 266.4cm

Internal Height: 224.8cm

Footplate: W16.5cm x D15cm

Hand Crank: W121cm

Post: W239.4cm

Main Beam: W383.1cm

Beam: W274.9cm

Louvre: W274.9cm

Carton Details

Box 1: W400cm x D25cm x H25cm | 44kg

Box 2: W292cm x D32cm x H39cm | 41.83kg

Box 3: W292cm x D32cm x H39cm | 42kg

Box 4: W256.5cm x D27cm x H24cm | 42kg

SKU

HL-PER-FR-GR-34

Bulb Type

LED

Cable Length

4m

Colour(s)

Grey

Fixing Type

Bolted

IP Rating

IP68

Light Bulb Colour

Multi-colour

Material(s)

Aluminium

Open Mechanism

Manual Crank Handle

Powder Coating Finish

Tiger Drylac ® Powder Coating

Power Source

Mains Powered Transformer

RAL Code

7016

Shape

Rectangle

Tilt Functionality

Yes - louvres tilt 90° clockwise when facing crank handle mechanism

Voltage

24V

Wattage

150W

Built-in Drainage System

Yes

Dimmable

Yes

Easy Maintenance

Yes

Integrated Lighting

Yes

Remote Controlled

Yes

Rot Resistant

Yes

Tiger Drylac Powder Coating

Yes

UV Resistant

Yes

Water Resistant

Yes

Tilting Louvres

Yes

Year Round Use

Yes

Product Care Advice

Regularly clean the aluminium frame with a damp cloth and mild detergent, avoiding abrasive cleaners. Check louvre blades for smooth operation. Let side blinds cool and air dry before retracting. During strong winds and when not in use, roll up the blinds to protect the structure and keep the louvred roof fully open. In extreme conditions, secure the blinds with a spring clamp in the rolled-up position.

Assembly Details

Assembly Required - We recommend 2-3 people to assemble. Depending on the skill set, assembly time is approximately 2-3 hours.

Assembly Video(s)

Pergostet Pergola Step by Step Assembly Video

Explore the lineup.

Compare our range of PergoSTET pergolas; Lite, Plus & Deluxe.
Colour(s) available
Freestanding size(s)
Wall mounted size(s)
Material(s)
Optional extras
Louvre profile
Integrated LED lighting
Frame coating
Framework
Roof type
Drainage System
Opening Mechanism
Installation
Pergostet
Lite
Explore
3x3m & 3x4m
-
Frame: Aluminium
Louvres: Steel
Heater
Single layered louvres
-
Triple layered Tiger Drylac ® Powder Coating
9x9cm
Manual louvred roof
Fully integrated
Manual hand crank
2 people
(3-4 hours)
Pergostet
Plus
Explore
3x3m, 3x4m & 4x4m
3x3m & 3x4m
Aluminium
Side blinds, heater
Double layered louvres*
Yes - embedded in gutter
Triple layered Tiger Drylac ® Powder Coating
10x10cm
Manual louvred roof
Fully integrated
Manual hand crank
2 people
(3-5 hours)
Pergostet
Deluxe
Explore
3x3m, 3x4m, 3x6m, 3x7m
& 3x9m
3x3m, 3x4m, 3x6m, 3x7m
& 3x9m
Aluminium
Side blinds, panels, sliding doors & heater
Double layered louvres
Yes - embedded in louvres
Triple layered Tiger Drylac ® Powder Coating
11x11cm
Motorised louvred roof
Fully integrated
Remote controlled
2 people
(3-6 hours)
